DC MIG/MAG welder

Home > Products > Welding Machine > DC MIG/MAG welder >
IGBT Inverter MIG MAG MMA Welder 250A
  • Specification

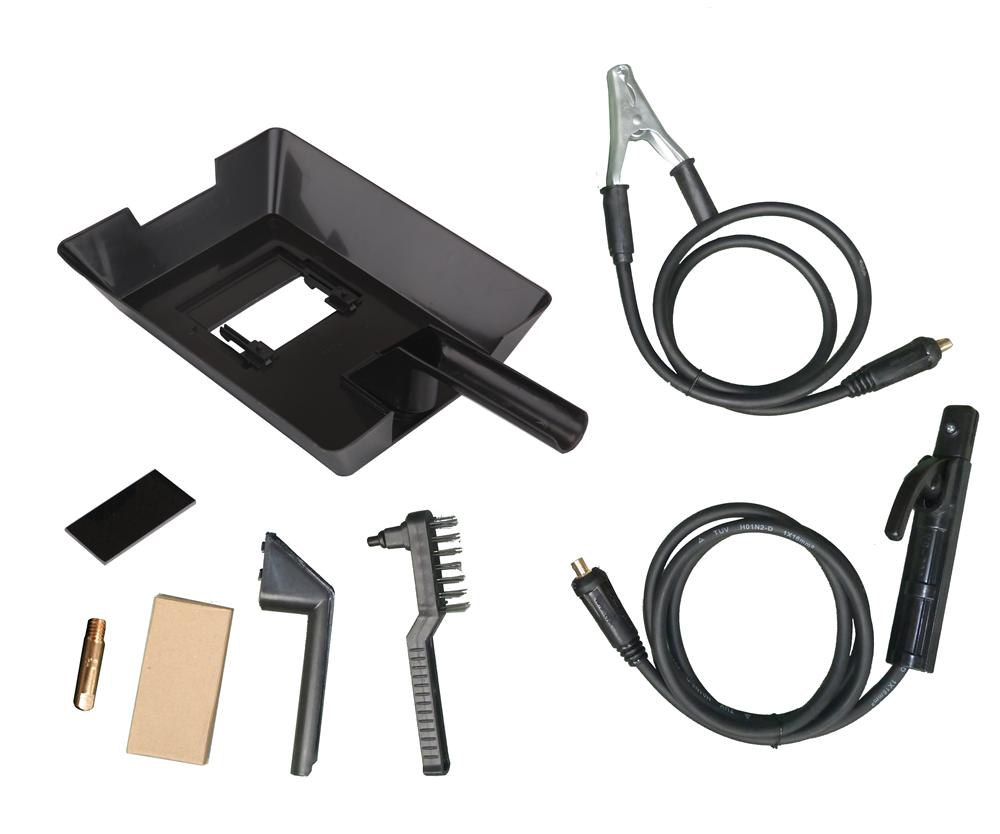

  • Accessories
  • Product Description

  • Item Model INMIG-200 INMIG-250
    Input power(V) 400V 400V
    Frequency 50 50/60Hz
    Rated input current(A) 9.2 12.6
    Rated input capacity(KW) 6 8.3
    No-load voltage(V) 55±5% 55±5%
    Rated working voltage(V) 15.75-24 15.75-26.5
    Output current adjust range(A) 35-200 35-250
    Rated working voltage(V) 60% 60%
    Welding current 10min100% 155A 194A
    Insulation grade H H
    Power factor(cos ø) 0.93 0.93
    Efficiency 85% 85%
    Machine dimension 780*385*740 780*385*740
    Net weight 43KG 43KG
    Protection grade IP21S IP21S
    Cooling method Air-cooled Air-cooled




  • 1. Adopt 20KHZ IGBT inverter technology, current mode control, quality reliable, performance steady.
    2. Closed-loop feedback, constant voltage output, strong capability of anti-network fluctuation(±15%)..
    3. Overheat, over current protection.
    4. Electronic inductors regulatory function, stable welding process, small spatter, good weld molding, and can be
    widely used in the automotive, steel doors and windows, upholstery and other industries.
    5. Suitable for thickness 0.8mm and above, the best choice for sheet plates welding.
    6. Compact, portable, convenient mobile, easy operation, economical.
     Energy saving, low consumption, low requirements for power network capacity.
    7. Suitable for welding wire 0.8, 1.0, 1.2mm
