IGBT Inverter MMA welder

Home > Products > Welding Machine > IGBT Inverter MMA welder >

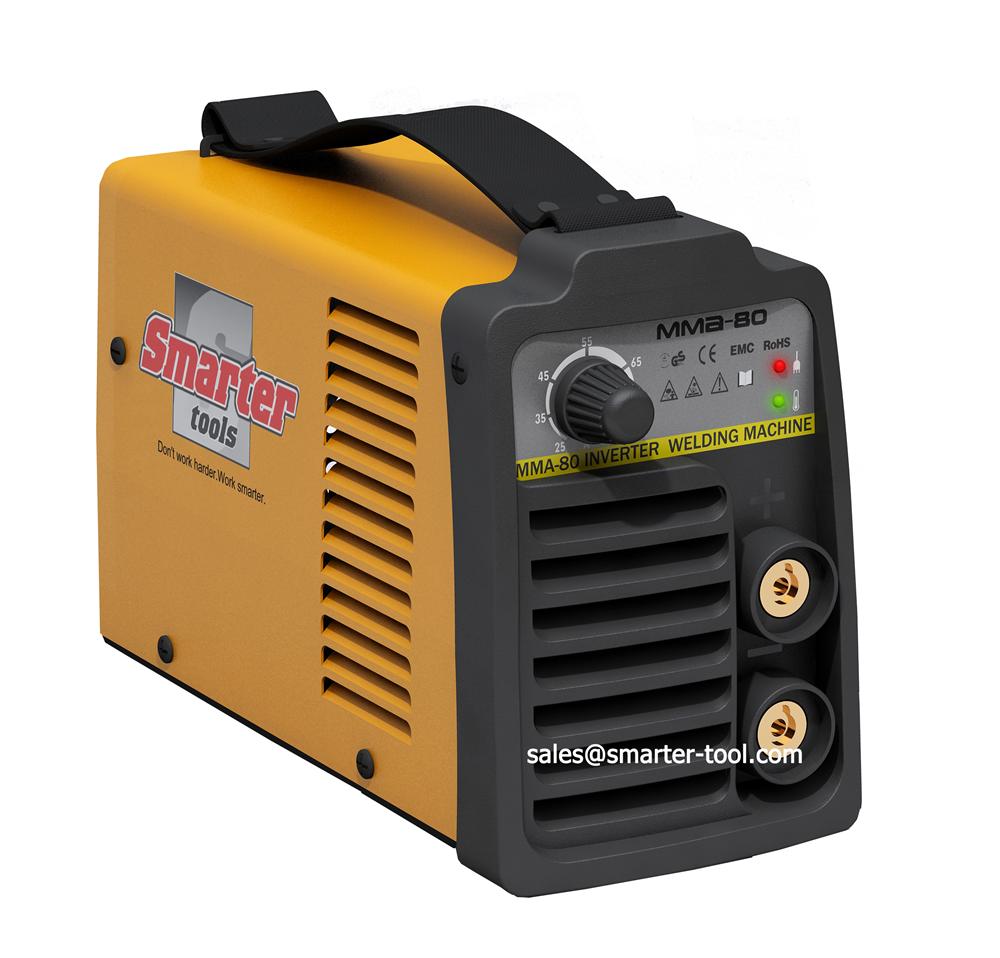

IGBT Inverter MMA Welder
  • Specification
  • Accessories
  • Product Description

  • Item Model IBM-81 IBM-101 IBM-121 IBM-141
    Rated voltage(V) 230 230 230 230
    Input Power(Kw) 2.2 3.2 3.4 4.1
    Frequency(Hz) 50/60 50/60 50/60 50/60
    No-load voltage(V) 78 78 78 78
    Current range(A) 10-80 10-100 10-120 10-140
    Rated duty cycle(%) 35%@80A 35%@100A 35%@120A 35%@140A
    Efficiency(%) 80 80 80 80
    Class of Insulation H H H H
    Applied welding Rod(mm) 1.6-2.5 1.6-3.0 1.6-3.2 1.6-3.2
    Case Protection Degree IP21 IP21 IP21 IP21
    Arc-starting (COS) 0.93 0.93 0.93 0.93
    Weight(Kg) 3.2 3.2 4.2 4.2
    External Dimension(cm) 36.5*21.5*26.2 36.5*21.5*26.2 37.5*22.5*26.2 37.5*22.5*26.2


  • 1. Advanced IGBT inverter technology
    2. Compact, portable, highly effective, low consumption, energy saving;
        With strong compensation capability, resistant to voltage fluctuation, stable welding current.
    3. Anti-stick, thermostatic control, fan cooled, carrying strap.
    4. Hot start, arc force, overload protection.
    5. Supplied complete with electrode holder and earth clamp, face mask and welding brush, carton box.
    6. Applicable for welding of all kinds of ferrous metals such as low carbon steel, medium carbon steel and alloy steel, etc.
